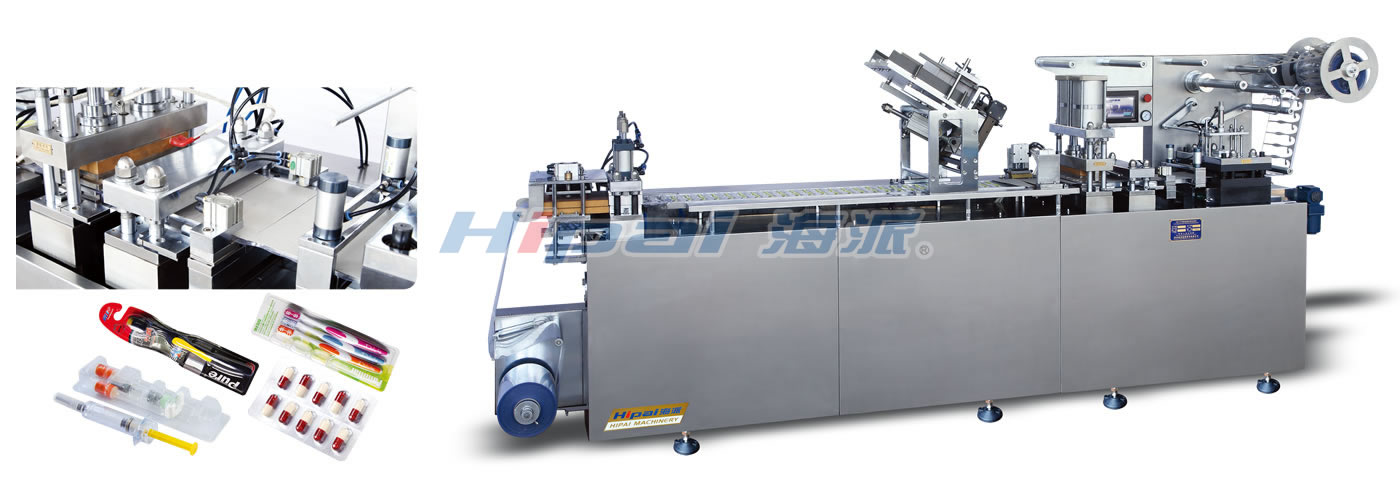

HP-270 Multifunctional Dialysis Paper/Paper Card Packaging Machine

It is suitable for paper and plastic packaging of toothbrushes, hardware, stationery, medical equipment such as injections, syringes, medicines and other related products.

Key Performance Structure Features:

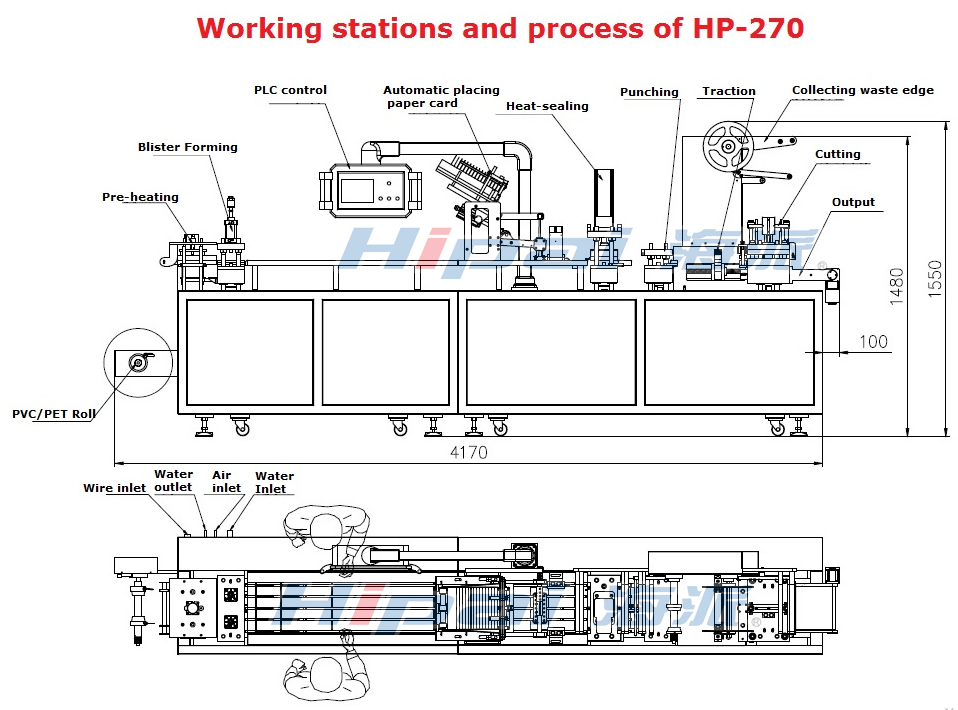

The main equipment of this equipment is plastic (PVC/PET) heating, forming, forming blister testing (optional), stroke traction, feeding, lack of material inspection and waste (optional), automatic paper card, paper plastic preheating seal , reheat seal, aircraft hole (optional), random coding (optional), punching and other feature stations.
■ Worm gear reducer drive, overload protection of the main engine, low noise and stable operation.
■ Adjustable stroke size, free to change the size of the block, suitable for multi-species products.
■ It adopts dual-axis positioning and (spline) shaft transmission, and the work is stable and stable.
■ It adopts PLC programmable modular design, which is easy to operate and easy to maintain.

Main technical parameters:

Punching speed (standard version 245 x 50 x 2mm) one out of two card toothbrush Paper / plastic 15 times / minute
Production capacity Paper / plastic 1800 times / hour
Feed stroke optional range 30-220mm
Formed area 255-220mm
Forming depth Plastic 40mm (Special requirements 50mm)
Forming up/down heating power 2kw ( x2 )
Heat sealing heating power 3.5kw
main motor power 1.5kw
Total power of the power supply Three-phase four-wire 380v 50hz (220v 60hz) 11.8kw
Air pump volume flow ≥ 1m3 / min
Packaging material Plastic hard sheet (special made of PET structure) ≤ 0.2-0.5x270mm
Paper card / dialysis paper / PE film / aluminum foil ≤ 270x220x0.5mm / 270x0.02mm
Dimensions 4350x700x1650mm
Total Weight 2000kg
