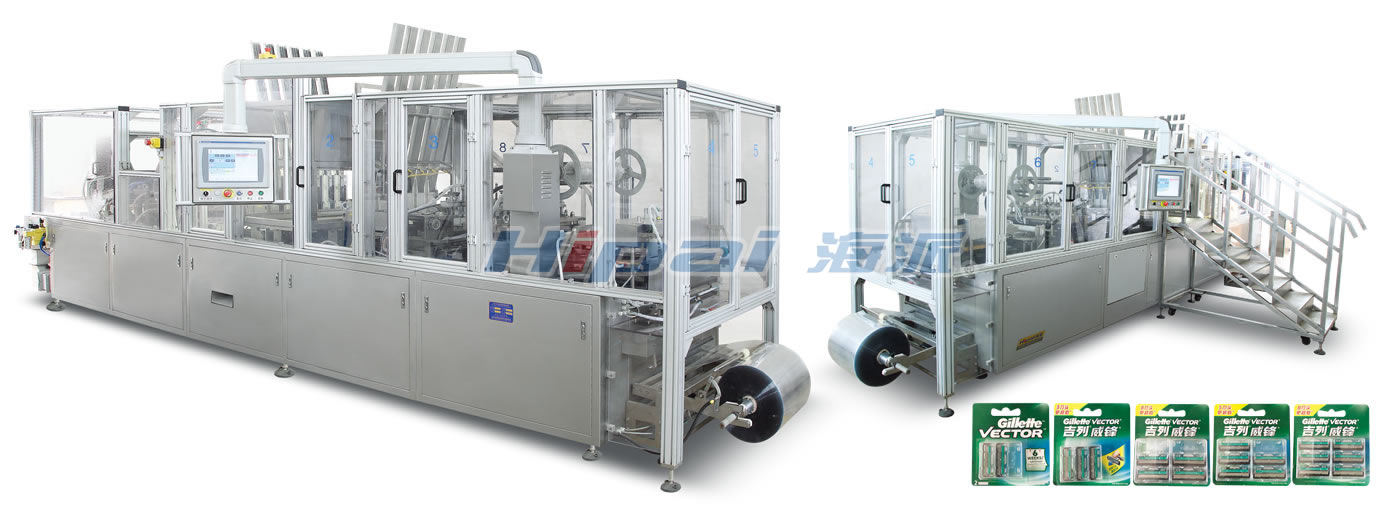

HP-650 intelligent automatic paper card packaging and packaging machine

Main performance structure features:
■ It adopts concave and convex die/positive/negative pressure integrated molding, aircraft hole (optional), servo motor traction, punching, robot transition, automatic feeding (optional), automatic paper card, heat sealing (upper heating, lower heating) , high-frequency three-choice one), automatic online coding (optional), finished robot grab (optional), finished product delivery, etc., which is simple in structure and easy to operate;
■ It adopts 304 stainless steel cover, which meets the GYP requirements of the national pharmaceutical industry. The safety protection system of the whole machine is in accordance with the standard of TUV of TÜV Rheinland, and the safety cover (optional) is beautiful in appearance and clean and convenient;
■ Imported frequency conversion speed control, color touch screen (human-machine interface) and PLC programmable control system, high output, low noise, clear and simple operation, high degree of automation, more humanized;
Using servo motor stepless control stroke, simple adjustment stroke, quick mold (optional);
■ With photoelectric control, there is a buzzer alarm when the PVC/PET chip is used up and the paper card is not enough;
■ It adopts the whole machine split design to facilitate transportation and access to the elevator;
■ PVC/PET material splitting feeding device, non-stop film change/waste function (optional);
■ Design molds and automatic feeders according to user and package requirements;
■ It is possible to design a linkage production line (optional) with the customer to design the previous process and the next process.

Main technical parameters:

Punching speed (standard version 300 x 98 x 30mm) - five cards 5 Paper / plastic 15 times / minute
Production capacity Paper/plastic 5400 times/hour
Feed stroke optional range 30-280mm
Formed area 630-220mm
Forming depth Plastic 40mm (Special requirements 65mm)
Forming up/down heating power 2.5kw ( x2 )
Heat sealing heating power 4.5kw
main motor power 2.2kw
Total power of the power supply Three-phase four-wire 380v 50hz (200v 60hz) 15.8kw
Air pump volume flow ≥ 1m3 / min
Packaging material Plastic hard sheet (special made of PET structure) ≤ 0.2-0.5x650mm
paper card ≤ 650x300x0.5mm
Dimensions 6500x980x1850mm
Total Weight 3500kg
