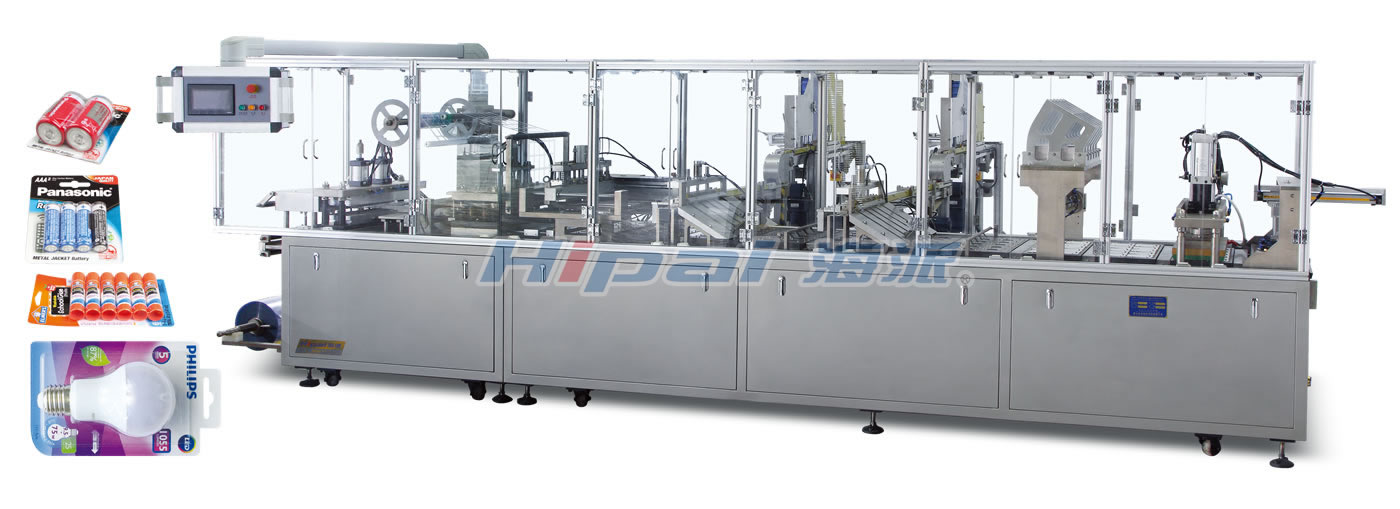

HP-500E multi-function automatic paper card packaging machine

Suitable for hardware, stationery, toys, tableware, daily necessities, cosmetics, rubber products, auto parts, medical equipment, medicines, etc.; such as: razors, batteries, electronics, small flashlights, light bulbs, cleaning balls, foot pads, 502 glue, AB glue, spark plug, brake pad; correction tape, correction fluid, eraser, pencil sharpener, stapler, ballpoint pen, solid glue, USB flash drive, card; car; chopsticks, small spoon; toothbrush, dental floss, lipstick, Mask, car perfume; injection, syringe, first aid kit, safflower oil, wind oil, Bao Ying Dan, Ji Xin Wan and so on.

Main performance structure features:
■It adopts positive/negative pressure forming, aircraft hole (optional), cutting, feeding, lower paper card, heat sealing, finished product conveying, etc. The structure is simple and easy to operate;
■It adopts 304 stainless steel cover, which meets the GMP requirements of the national pharmaceutical industry. It has beautiful appearance and is easy to clean;
■Using imported variable frequency speed control, color touch screen (human-machine interface) and PLC programmable control system, the output is high, the noise is low, the operation is clearer and simpler, the degree of automation is higher, and it is more humanized;
■Using servo motor stepless control stroke, the adjustment stroke is simple, and it is convenient to change the mold;
■Opto-optic control, buzzer alarm when the PVC hard disk is used up and the cardboard is not enough;
■It adopts the whole machine split design to facilitate transportation and access to the elevator;
■Using a roll-to-roll plastic sheet feeding device, it can save a lot of packaging materials;
■Molds and automatic feeders can be designed according to user and package requirements.
Main technical parameters:

Punching speed (standard version 300 x 98 x 30mm) - five cards 5 Paper / plastic 15 times / minute
Production capacity Paper/plastic 4500 times/hour
Feed stroke optional range 30-280mm
Formed area 470-220mm
Forming depth Plastic 40mm (Special requirements 65mm)
Forming up/down heating power 2.2kw ( x2 )
Heat sealing heating power 4.5kw
main motor power 1.5kw
Total power of the power supply Three-phase four-wire 380v 50hz (200v 60hz) 12.8kw
Air pump volume flow ≥ 1m3 / min
Packaging material Plastic hard sheet (special made of PET structure) ≤ 0.2-0.5x500mm
paper card ≤ 500x300x0.5mm
Dimensions 6800x980x1850mm
Total Weight 2800kg
